Cotton Bud Manufacturing Machines Operating Manual
admin /
07 Aug, 2018
Overview for Cotton Bud Manufacturing Machines
Thank you for choosing the cotton bud manufacturing machines produced by our factory. This manual is specially used to guide you to understand the function and characteristics of this cotton bud machine.
The automatic cotton bud making machine is designed and manufactured by our factory automatically according to the national health standard. Automatic cotton ear buds equipment fills the domestic blank, it has the advantages of stepless speed regulation.
This cotton buds making machine is capable of producing cotton swabs of different specifications, with strong comprehensive performance, full head, smooth surface, uniform appearance, and strong winding between head and rod. The machine can produce 30,000-40,000 cotton swabs per hour, which overcomes the disadvantages of low efficiency of traditional manual winding, uneven size of cotton swabs and poor sanitary conditions. This machine sells well both at home and abroad.
Scope of application for cotton buds machine
This cotton buds manufacturing equipment is used in personal hygiene materials factory, also suitable for large and small hospitals and small family businesses with large cotton swabs, good ways to start a business and get rich.
Technical Parameters For Cotton Buds Making Machine
1. Production capacity: 30,000 to 40,000 units/hour
2. Requirements for length of cotton buds shaft: 68mm, 72mm, 100mm and 120mm
3. Material of cotton rod shaft
(1) Bamboo, wooden shaft, paper shaft and plastic shaft shall have a smooth, round and hairless surface, fresh and dry color and have been sterilized.
(2) Size required length: +/- 0.05 mm, 2.2-2.4 mm diameter Φ.
4. Power: 2.3KW voltage 380V 220V 50HZ (double-head machine); 1.6KW voltage 380V 220V 50HZ (single-head machine)
Working Video of Cotton Bud Manufacturing Machines
Boot:
Working Video of Cotton Bud Manufacturing Machines

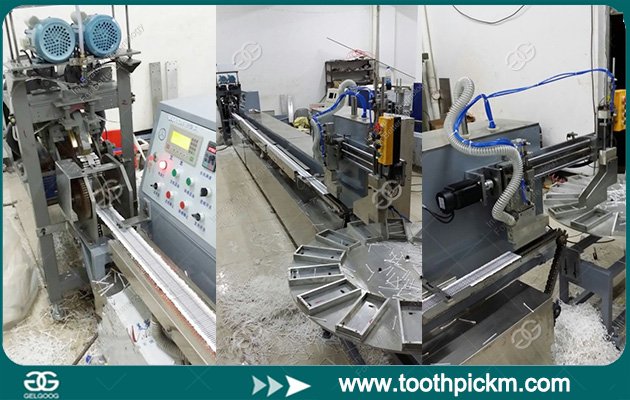

Cotton Bud Manufacturing Machines Process and Construction
1. Preparation and inspection before starting
(1) connect the power supply to 380V, and check whether the operation of main engine and card is inverting (no load);
(2) Add the cotton swab rod into the hopper
(3) Add the glue (actually a mixture of glue and water, and check whether the water pipe is usually equal to and flow size. It is recommended that the ratio of adhesive and water is 1:20 or 1:150).
(4) Check whether the mesh belt at the suction outlet is installed, and the mesh belt should be tight and wrinkle-free.
(5) Press the cotton sliver into the feeding mechanism (it is recommended to manually rotate the feeding gear to and fro to check whether the feeding mechanism can smoothly deliver the cotton and not jam the case, and adjust the feeding governor to the corresponding speed).
Remember that! Do not put a large number of tampons into the mouth of the carding machine by the feeding mechanism when the crushing machine (carding machine) is not started, which may lead to mechanical clamping failure or damage to the crushing machine. Warning: do not clean (or repair) the machine while it is running at high speed. Combined above, you can start the machine.
Boot:
(1) Start host server ① and send the shaft to start.
(2) Start the breaker ② and suction fan.
(3) Start the screen of the cotton delivery mechanism ③ and adjust the speed of cotton delivery according to the requirement of the cotton head. The machine equipped with automatic water switch will open automatically when the cotton delivery mechanism starts, and the switch will close automatically.
Shutdown: The shutdown process is just the opposite of starting up.
First, turn on the torsion switch (heating) first.
Second, shut off ③ send the cotton and glue.
Third, press the switch ② to stop the broken cotton.
Fourth, press the switch to stop the feed pipe. Fifth, in case of emergency, you can press the emergency stop switch, then all the institutions stop working.
Transportation and Installation of Cotton Buds Machines
1. When the machine is loaded, try to avoid shock, severe vibration and excessive tilt.
2. The mounting surface of the cotton buds manufacturing machines shall be smooth to ensure that there will be no vibration or shaking during the operation of the machine.
Fifth. Statement
The user shall have the obligation to protect the technical and commercial secrets of the supplier, and shall not provide convenience for others to spy on the above secrets without the permission of the supplier; otherwise, if legal issues are involved, the user will be sued as a co-defendant and bear the corresponding legal responsibilities, and the user will lose the after-sales service. The final explanation of this specification belongs to Henan GELGOOG Machinery.
